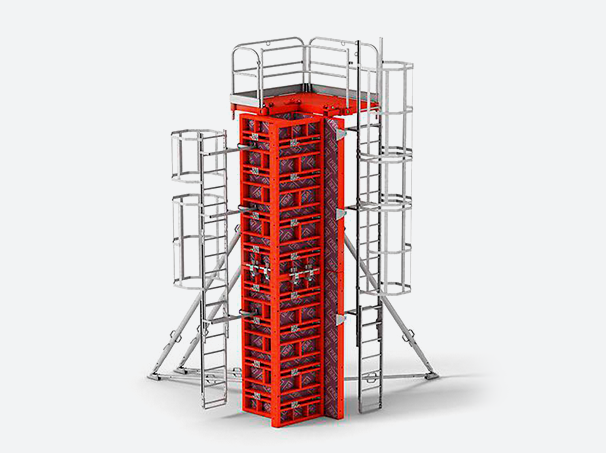

Vertical Column Formwork Systems

Vertical Column Formwork Systems

Modular | Adaptable | High-Precision

We offer a specially engineered range of Vertical Column Formwork Systems — designed to provide flexibility, speed, and accuracy for column casting in a wide variety of construction projects.

Ideal for developers, contractors, and infrastructure builders, our modular vertical systems are easy to assemble, lightweight, and built to deliver superior surface finish and dimensional precision.

Developed to target critical structural zones, these formwork modules combine the best of aluminium technology with excellent ROI, utility, and site performance.

Advantages of Aluminum Formwork
  • Lightweight, facilitating handling and transportation
  • High reusability, reducing waste and costs
  • Speeds up construction timelines with quick assembly
  • Provides precise finish, reducing the need for further plastering
  • Environmentally friendly, with reduced waste and recyclable material
  • Offers safety features with reduced risks during handling

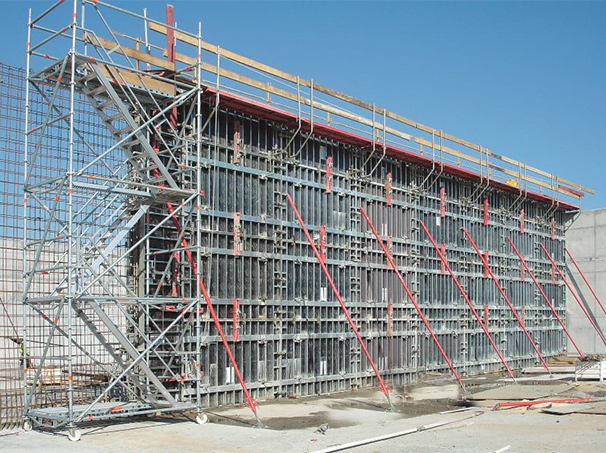

Wall Formwork Multipurpose Solutions

Engineered Strength | Versatile Applications | Proven Performance

We provide a reliable and versatile range of Wall Formwork Systems designed to meet the structural demands of basement walls, retaining structures, and vertical casting applications.

Our wall formwork systems are ideal for single-sided wall construction, especially in cases where conventional formwork falls short in safety, speed, or engineering integrity.

Features
  • 100% Aluminium panels with Friction Stir Welded Panel of upto 600mm
  • Gang form possible for faster execution
  • Anchoring possible for more stability
  • Safety in execution
  • All extrusion panel of AL6061-T6
  • Perfect geometry of the panel
  • Standardization in sizes of the panels
  • Robotic welding with high precision in manufacturing
  • Permissible load carrying capacity of 60kn/sq m
  • Capability to pour up to a height of 2.4 m in one go
  • Rust proof and weather proof
  • Repairable at site or factory
  • Higher no. of repetitions (more than 300, with proper care)
  • 3 tie-rods for 3 meter panel
  • Supporting structures with attachments without damaging the asset
  • Some panels can be re-used for casting of other vertical elements
Benefits
  • Form finish without honeycombing
  • Applicable for podiums as well as super structures
  • Faster construction
  • Value addition to existing process
  • Savings on labour costs and expenses
  • Salvage value to end users
  • Versatile product with usage across multiple projects and application
  • Low initial investments leading to high ROI in shorter period of time
  • Low investments
  • Faster completion of basements & podiums
  • Quick replacement of lost or damaged panels
  • No wooden wastages
Flexi Column Formwork

Versatile Column Casting | Minimal Accessories | Fast Turnaround

Flexi Column Formwork System is designed to simplify and accelerate the casting of varied column sizes using a single set of adaptable formwork panels. This flexible system allows quick adjustments in size and configuration, reducing the need for multiple formwork sets.

Features
  • Adjustable panels executing multiple sizes
  • Less material consumption at site
  • 100% Aluminium panels with Friction Stir Welded Panel of upto 600mm
  • All extrusion panels of AL6061-T6
  • Perfect geometry of the panel
  • Standardization in sizes of the panels
  • Plugs for filling the tie-rod gaps in the panels
  • Robotic welding with high precision in manufacturing
  • Higher no. of repetitions (more than 300, with proper care)
  • Permissible load carrying capacity of 60kn/sq m
  • Capability to pour up to a height of 2.4 m in one go
  • Rust proof and weatherproof
  • Crane independent system
  • Repairable at site or factory
  • 3 tie-rods for 3 meter panel
  • Applicable for any vertical applications
  • CNC plasma cut one piece side panels leading to higher strength
Benefits
  • Form finish without honeycombing
  • Applicable for podiums as well as super structures
  • Faster construction
  • Value addition to existing process
  • Savings on labour costs and expenses
  • Salvage value to end users
  • No wooden wastage
  • Low investments
  • Quick replacement of lost or damaged panels
  • Low initial investments leading to high ROI in a shorter period of time

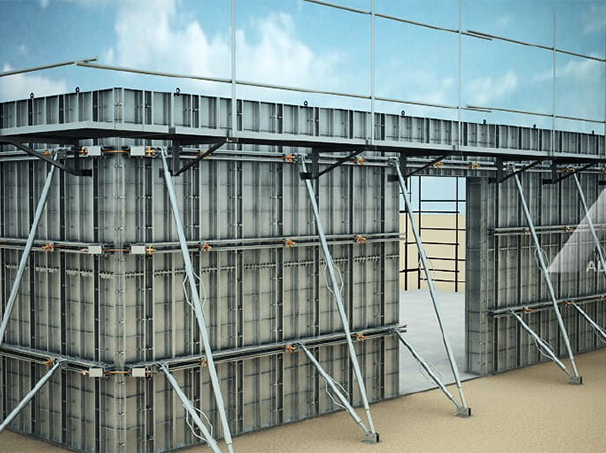

Tie Rod System

Robust Modular Construction | High Load Capacity | Versatile Applications

Tie Rod System offers a reliable solution for modular construction where slabs, columns, and walls are cast separately. Engineered for higher load-bearing capacity, this system is ideal for projects requiring wall thicknesses exceeding 400 mm.

Features
  • 100% Aluminium panels with single extrusion of upto 600mm
  • Robotic welding with high precision in manufacturing
  • Friction Stir Welded Panel of AL6061-T6
  • Perfect geometry of the panel
  • Standardization in sizes of the panels
  • Safety in execution
  • 3 tie-rods for 3-meter panel
  • Permissible load carrying capacity of 60kn/sq m
  • Capability to pour up to a height of 2.4 m in one go
  • Rust proof and weatherproof
  • Crane independent system
  • Repairable at site or factory
  • Higher no. of repetitions (more than 300, with proper care)
  • Applicable for any vertical applications
Benefits
  • Form finish without honeycombing
  • Faster construction
  • Value addition to existing process
  • Savings on labour costs and expenses
  • Salvage value to end users
  • No wooden wastage
  • Quick replacement of lost or damaged panels
  • Low initial investments leading to high ROI in a shorter period of time

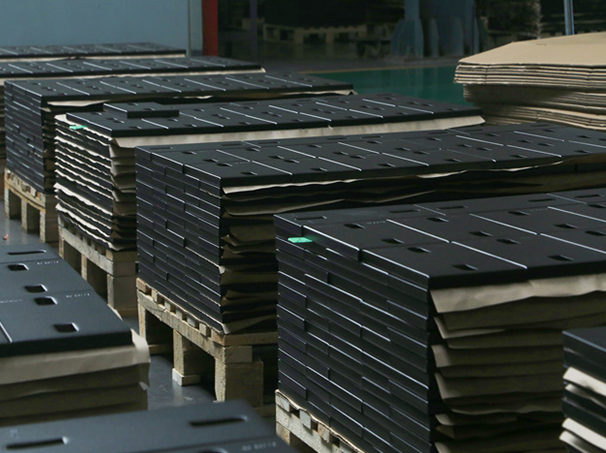

Tie Plate System

Industry-Leading Construction Solutions | Efficient Execution | Superior Form Finishes

Tie Plate System stands as a flagship product, widely recognized and trusted across the construction industry. Engineered for podium construction and high-rise superstructures, this system ensures hassle-free project execution.

Designed with convenience in mind, the Tie Plate System offers easy access to a wide range of accessories, enabling smooth workflows and exceptional form finishes for every project.

Features
  • 100% Aluminium panels with single extrusion of upto 600mm
  • Robotic welding with high precision in manufacturing
  • Friction Stir Welded Panel with grade AL6061-T6
  • Standardization in sizes of the panels
  • Safety in execution
  • 7 tie-plates for 3-meter panel
  • Permissible load carrying capacity of 60kn/sq m
  • Capability to pour up to a height of 2.4 m in one go
  • Rust proof and weatherproof
  • Repairable at site or factory
  • Higher no. of repetitions (more than 300, with proper care)
  • Applicable for shear walls, columns & lift-core walls
Benefits
  • Form finish without honeycombing
  • Faster construction
  • Value addition to existing process
  • Savings on labour costs and expenses
  • Salvage value to end users
  • No wooden wastage
  • Low investments
  • Quick replacement of lost or damaged panels
  • Low initial investments leading to high ROI in a shorter period of time
